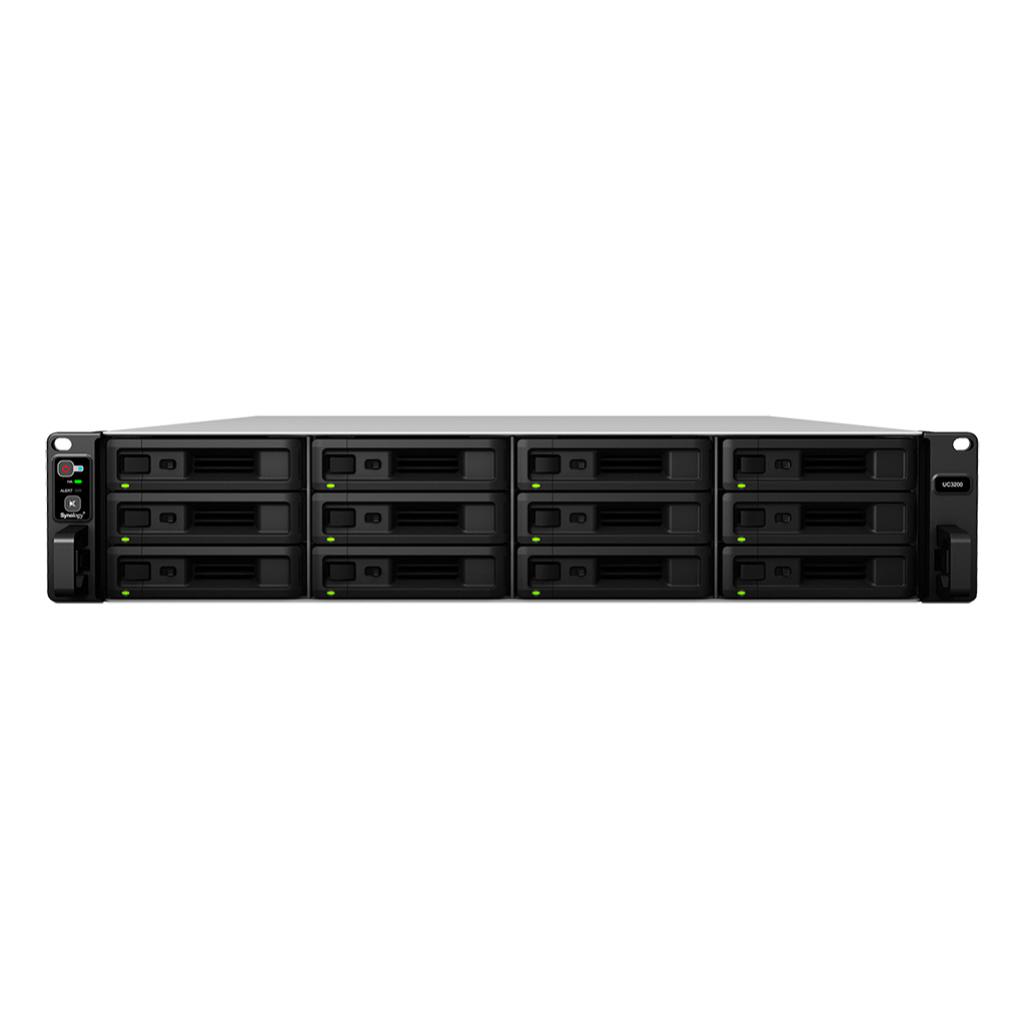

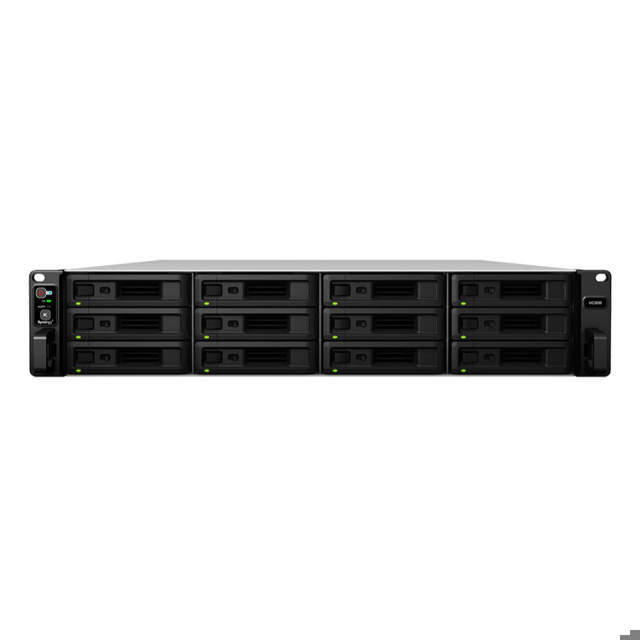

Synology UC3200 Unified Controller
Synology UC3200 is designed for high-availability SAN environments, Synology Unified Controller UC3200 offers active-active architecture for non-distruptive iSCSI service. It provides resilient data protection solutions with a simplified management interface while maximising service uptime for critical services. UC3200 is backed by Synology's 5-year limited warranty Note - aged stock stock on stock on hand only.
Enquire for a Project Quote
Product Information
-
- High performance, active-active storage solution to provide non-disruptive iSCSI services
- Over 140,000 4K Random Write IOPS enterprise-class performance with low latency
- Flexible capacity able to scale up to 36 drives with RXD1219sas expansion units
- Virtualization-ready with VMware vSphere, Microsoft Hyper-V, Citrix XenServer and OpenStack Cinder compatibility
- Resilient cache protection mechanism to prevent data loss
- Instant data protection with built-in snapshot and replication technologies
- Simple and unified user interface to effortlessly manage data and storage tasks
- Backed by Synology's 5-year limited warranty
Processor
Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency.
4 x DDR4 memory slots
8GB ECC UDIMM, expandable up to 64GB to boost system performance.
Fan
Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime.
SATA DOM
The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives.
Non-Transparent Bridge (NTB)
Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable.
Specifications
| Warranty | 5 Years |
| Classification | Enterprise |
| Cooling Fan | 4 x (60 x 60 x 51 mm) |
| CPU Clock Speed | 2.4GHz |
| Drive Bay Configuration (#) | 12 x 3.5/2.5" SAS HDD/SSD |
| Drive Bays | 12 ( Expand upto 36 Bays with 2 x RXD1219SAS) |
| eSATA Port | No |
| Form factor | 2U Rack Mount |
| HDD Pre-Installed | Diskless |
| Hot Swap Bays | Yes |
| LAN | 2 x 1GbE RJ-45 + 1 x 10GbE RJ-45 (10GBASE-T) ) Per Controller |
| Memory DRAM (Installed / Max) | 8GB / 64 GB |
| Memory Type | DDR4 ECC UDIMM |
| Package Contents | Main Unit (1), AC Power Adapter (1), RJ45 Cable (2), Accessory Pack (1) |
| Packaging | Retail |
| Processor | Intel Xeon D-1521 4-core |
| Scalable | Yes |
| Storage Capacity (Installed) | None |
| USB Port | No |
