CPU | CPU Model | Intel Xeon D-1739 |
| CPU Quantity | 1 |
| CPU Cores | 8 |
| CPU Threads | 16 |
| CPU Architecture | 64-bit |
| CPU Frequency | 3.0 (base) / 3.5 (turbo) GHz |
| Hardware Encryption Engine |
|
Memory | System Memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB × 1) |
| Total Memory Slots | 6 |
| Maximum Memory Capacity | 96 GB (16 GB x 6) |
| Notes | - Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For information about recommended memory configurations, please check the Product Manual of your Synology product.
|

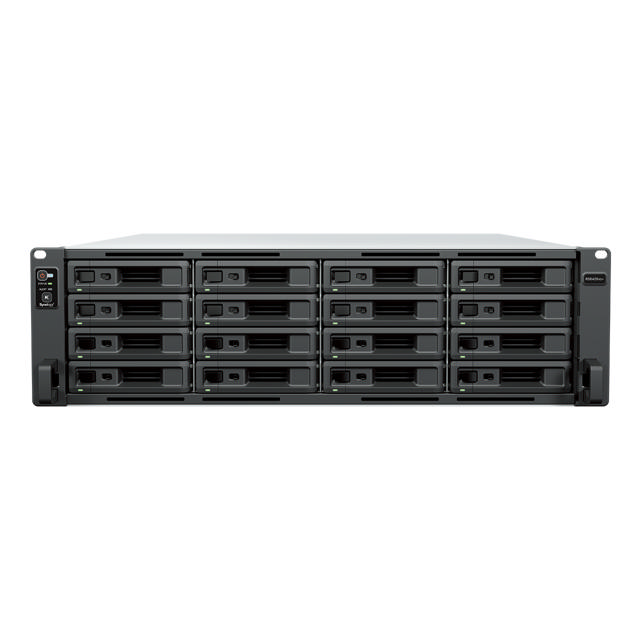

Storage | Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 64 (RX1225RP × 4) |
| Drive Type (See all supported drives) | - 3.5" SATA HDD
- 2.5" SATA SSD
|
| Hot Swappable Drive* |
|
| Notes | Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article. |

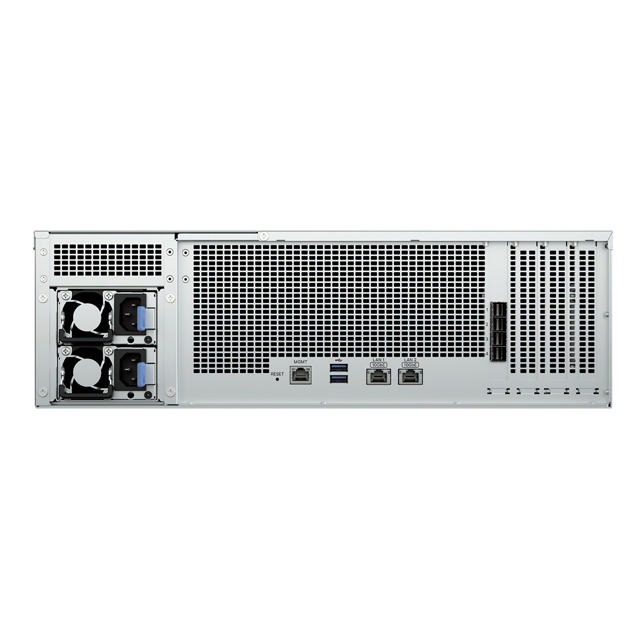

External Ports | RJ-45 10GbE LAN Port | 2 |
| Out-of-Band Management LAN Port | 1 |
| USB 3.2 Gen 1 Port | 2 |
| Expansion Port | 4 |
| Expansion Port Type | Mini-SAS HD |
PCIe | PCIe Expansion | 2 x Gen4 x8 slot (x8 link) |
Appearance | Form Factor (RU) | 3U |
| Size (Height x Width x Depth) | 132.3 mm × 482 mm × 656.5 mm |
| Weight | 17.9 kg |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) |
| Notes | The rail kit is sold separately |
Others | System Fan | 80 mm × 80 mm × 3 pcs |
| Fan Speed Mode | - Full-Speed Mode
- Cool Mode
- Quiet Mode
|
| Easy Replacement System Fan |
|
| Power Recovery |
|
| Noise Level* | 42.2 dB(A) |
| Scheduled Power On / Off |
|
| Wake on LAN / WAN |
|
| Power Supply Unit / Adapter | 550 watts |
| Redundant Power Supply |
|
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 165.45 watts (Access) 73.38 watts (HDD Hibernation) |
| British Thermal Unit | 564.92 BTU/hr (Access) 250.55 BTU/hr (HDD Hibernation) |
| Notes | - For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
|
Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
Certification | - FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
- BIS
- UL
|
Warranty | 5 Years |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) |
Environment | RoHS Compliant |
Packaging Content | - Main Unit X 1
- Accessory Pack X 1
- C13 to C14 power cord X 2
- Front Cover X 1
|
Optional Accessories | |
